      How to organize Assembly Trees using myCADtools

      Organizing assembly trees using MyCADtools for faster tree organization.

      The “Tree Manager” tool from MyCADtools is a very helpful tool to use for organizing your feature/assembly trees and can even differentiate your items by color. Organizing your tree alphabetically or chronologically is very helpful for quickly finding items to edit.

      Organizing Tree Features Alphabetically

      Firstly, we will open the assembly of choice and add the MyCADtools tab:

      Right-click in the existing tabs area >Tabs > MyCADtools

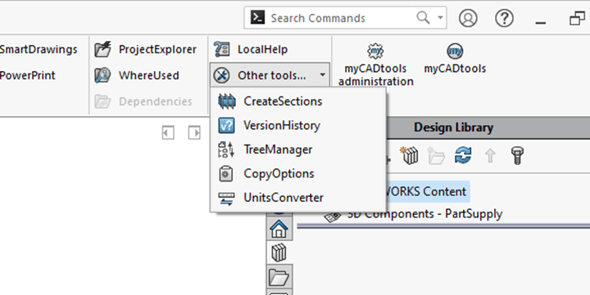

      Then we navigate to Other tools... > TreeManager

      myCADtools interface showing options for organizing assembly trees in SOLIDWORKS.

      Once selected, we have a variety of options but for now, the “Sort” tab on the left will be selected:

      SOLIDWORKS interface displaying an organized assembly tree using myCADtools.

      The tree can now be sorted by using either one of those options, but for now the “Sort ascending A-Z” will be selected.

      Click “Sort” on the right-hand side and look at the results:

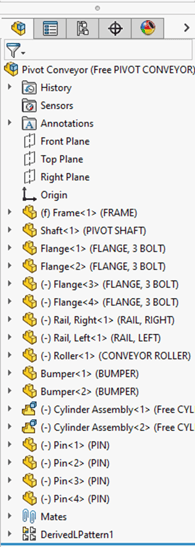

      myCADtools showing the process of sorting components in an assembly tree in SOLIDWORKS.

      Before

      Options in myCADtools for customizing the organization of assembly trees in SOLIDWORKS.

      After

      Here the feature tree has been sorted alphabetically, thus making it easier to find tree items that may have been previously difficult to find.



      Date published: 20/05/2022
